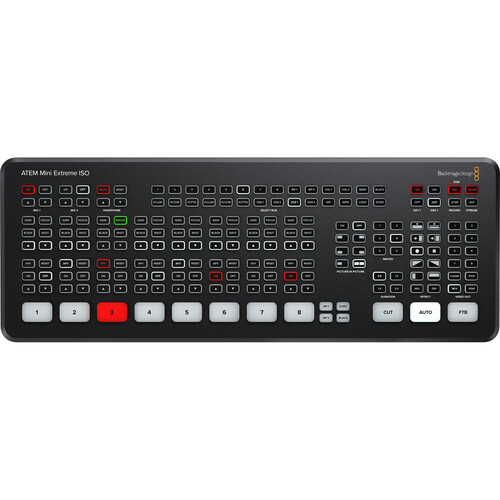

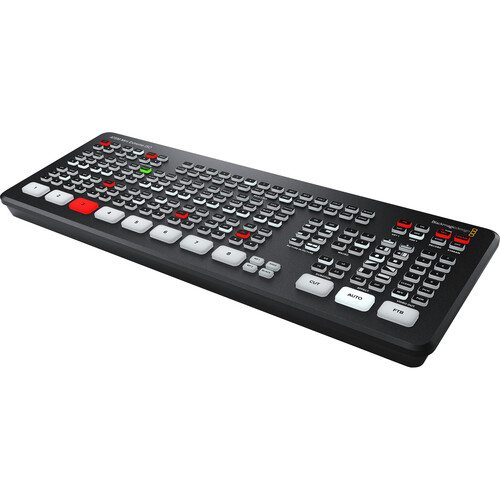

Blackmagic Design ATEM Mini Extreme ISO

Blackmagic Design ATEM Mini Extreme Specs
Mix Effects
Available M/E Layers
9 M/E
Effect Types
2x DVE
4x Luma Key
4x Chroma Key
Graphics Memory
20 Images
Downstream Keys
2x Chroma, Luma, DVE
Generators
5x Pattern
2x Color
Audio Mixing
2-Channel Mixing
Processing
Switching Type
Pushbutton, Software
Processing Resolution
1080p
Input
Number of Video Input Sources
8
Video Inputs
8x HDMI
Input Video Format
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs
2x 1/8″ / 3.5 mm TRS Stereo Analog Female
Input Audio Format
Analog
Embedded Audio Input
HDMI: 2-Channel (per Input)
Output
Video Output Channels
2
Video Outputs
2x HDMI
Output Video Format
HDMI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs
1x 1/8″ / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female
Embedded Audio Output
HDMI: 2-Channel
Multiview Output
16-Way Multiview via HDMI

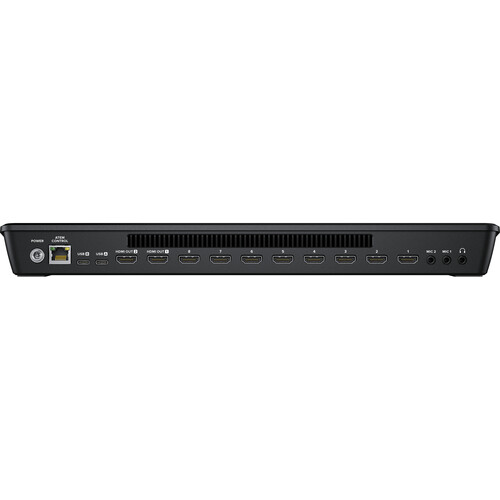

Connectivity
Other I/O
1x RJ45
2x USB-C
HDCP Support
No
IP Encoding/Decoding
IP Video
H.264:
1920 x 1080 Encoding
Transport Protocols
RTMP
Simultaneous Streams
1 Streams
Internal Recording
Recording Modes
1920 x 1080p up to 60 fps (MP4)
Hardware
OS Compatibility
Computer: macOS 10.15 or Later / Windows 10 or Later
Mobile: Android/iOS
Processor
Not Specified by Manufacturer
Wireless
No
Power
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
Device: 36 W
General
Operating Conditions
41 to 104°F / 5 to 40°C up to 70% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C
Dimensions
14.56 x 5.37 x 1.56″ / 36.98 x 13.64 x 3.96 cm
Weight
2.72 lb / 1.23 kg
Packaging Info
Package Weight
4.375 lb
Box Dimensions (LxWxH)
19.7 x 7.3 x 3″
